Low Profile RJ45 Jack

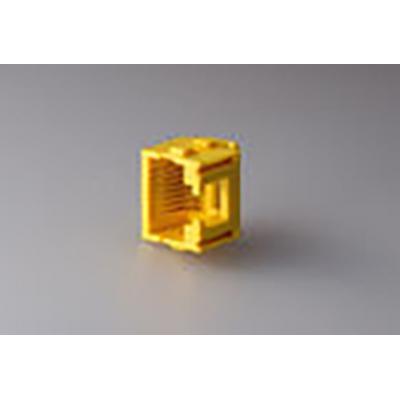

Modular SMT Low Profile RJ45 Jack, Rj45 Modular Plugs Sinking Connector Plastic Yellow

< >

Product Details:

Place of Origin:	Shen Zhen, China
Brand Name:	OEM/ODM
Certification:	ISO9001,SGS,UL,CE,REACH
Part Number:	Low-1060-208031

Payment & Shipping Terms:

Packaging Details:	300 pcs in 1 tray , 10 tray in 1 carton ( 3000pcs )
Delivery Time:	3-15 work days
Payment Terms:	T/T, L/C, D/A, D/P
Supply Ability:	2,000,000pcs/Month

Detailed Product Description

SMT Low profile RJ45 Modular Jack and Sinking connector plastic Yellow

Specifications

Description:	SMT RJ45 Modular Jack Connector Female Jack With Sinking Plate Yellow
Applications:	Sinking Jack
Mounting Type:	Side Enter
Orientation:	90° Angle (Right)
Termination:	Solder
LED Color:	No
Shielding:	Shielded , EMI Finger

ELECTRICAL:
1. VOLTAGE RATING: 125 VAC RMS.
2. CURRENT RATING: 1.5 AMP.
3. CONTACT RESISTANCE: 50 milliohms max.
4. INSULATION RESISTANCE: 500 me ohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
RESISTANCE:1000V AC RMS 50Hz. 1min.

MECHNICAL:
1. HOUSING MATERIAL: glass filled polyester(UL94V-0).
2. CONTACT MATERIAL: phosphor bronze T=0.46mm (C5 100).
3. PLATING: Gold plating over nickel.
4. DURRABILITY:750 cycles min.
5. PCB RETENTION PRE-SOLDER:1 LB min.
6. PCB RETENTION POST-SOLDER:10 LB min.

ENVIRONMENTAL:
1. STORAGE: -40℃ TO +85℃.
2. OPERATION: 0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE: 230-250℃(5-10 seconds)
MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.
