Low Profile RJ45 Jack

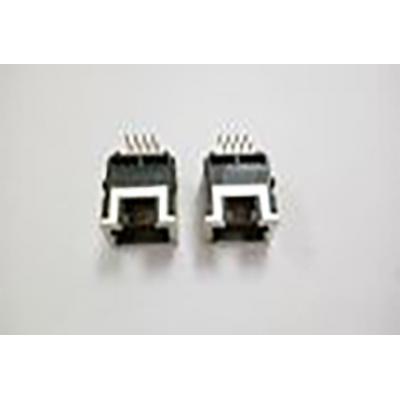

Low Profile RJ45 Female Jack 8P8C Sinking Board, HF Product Shielded

< >

Product Details:

Place of Origin:	Shen Zhen, China
Brand Name:	OEM/ODM
Certification:	ISO9001:2008
Part Number:	Low-1060-208102HF

Payment & Shipping Terms:

Packaging Details:	110pcs/reel; 550pcs/ Catron
Delivery Time:	24-30 work days
Payment Terms:	D/A, D/P, L/C, T/T, PayPal
Supply Ability:	100,000pcs/Month

Download

Inquiry

Detailed Product Description

Low Profile RJ45 Female Jack 8P8C Sinking Board, HF Product, Shielded

Specifications

Connector Type :	Sinking Jack
Number of Positions/Contacts :	8p8c (RJ45, Ethernet)
Number of Ports :	1
Number of Rows :	1
Mounting Type :	Through Hole
Orientation :	90° Angle (Right)
Termination :	Solder
Shielding :	Shielded
Ratings :	Cat3
Features :	Board Lock
LED Color :	No
Tab Direction :	Up
Contact Material :	Copper Alloy
Contact Finish :	Gold
Contact Finish Thickness :	Flash
Housing Material :	Thermoplastic

Electrical
1. voltage Rating:125 Val
2. Insulation Resiitance:500M min
3. Withstanding Voltage: AC 1000vxRMS50HZ or 60/hz1min

Mechanical

1. Operating:750 cycles min

Material
1. Housing : PBT(vl94v-0) RA66(vl94v-0) RA46(vl94v-0)
2. Contact Wire :Diameter 0.45mm phosphor bronze gold plating over nickel
3. Gold plating :3u inch6u inch150u inch30u inch50u inch

Environmental
1. Working Temperature:-20℃to 75℃
2. Storage Temperature: -45℃to 85℃
