RJ45 With Transformer

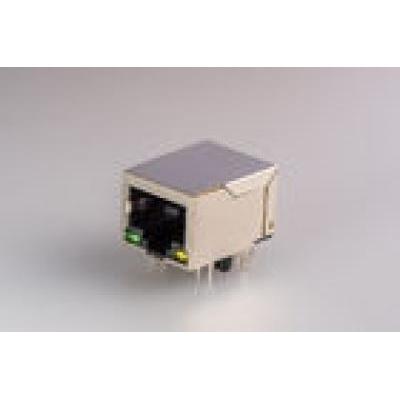

8P8C RJ45 with Transformer 10 / 100, Registered Jack 45 21.6MM Single Port with Shield / LED

  • 8P8C RJ45 with Transformer 10 / 100, Registered Jack 45 21.6MM Single Port with Shield / LED

Product Details:

Product Details:
Place of Origin:
Shen Zhen, China
Brand Name:
OEM/ODM
Certification:
ISO9001-2008 , RoHs , SGS , UL
Part Number:
RJ45-001B-08A6




Payment & Shipping Terms:

Packaging Details:
80 pcs in 1 tray,7 tray in 1 small carton, which is 31.5*24*19 CM,2 Small carton in a big carton which is 51*32.5*21 CM 8.6 KGS (1120 pcs) of each big carton
Delivery Time:
24-30 work days
Payment Terms:
D/A, D/P, L/C, T/T, PayPal
Supply Ability:
3000,000pcs/Month




Download

Inquiry

Detailed Product Description

Low Profile 21.6MM Single Port RJ45 with Transformer 10/100 And LED

 Specifications:
Description:
 8P8C  21.6MM  Single Port RJ45 With Transformer 10/100 And LED
Applications:
10/100Mbps
Mounting Type:
Side Enter
Orientation:
90° Angle (Right)
Termination:
Solder
LED Color:
G/Y
Shielding:
Shielded


Feature:
1.Complies with IEEE standards and all 10/100 Ethernet specifications including 350uH with 8MA DC bias
2.Contact:Phosphor Bronze C5191,Thickness=0.35mm plated, Nickel 30u" Min, Gold plated on content area 6u"Min
3.Housing:Thermoplastic PBT+30%GF UL94V-0 rated
4.Operating Temperature:0℃ --70℃
5.Storage temperature:-40℃--85℃

Peak reflow temperature rating 245℃
1.Minimum1500Vrms isolation per IEEE 802.3requirement

Electrical Specifications:(25℃)
1.Turns Ratio:
Tx & Rx = 1:1±5%
2.Insertion Loss:
@1-80MHz:-1.0dB Max
@100MHz: -1.2dB Max
3.Return Loss:
@1-30MHz:-16dB Min
@60-80MHz:-12dB Min
4.Common Mode Rejection:
@1-100MHz:-30dB Min;
@200MHz:-20dB Min
5.Crosstalk:
@1-100MHz:-30dB Min
6.OCL:
@100KHz,0.1V
@8MADC:350uH Min

7.Hi-Pot:1500VAC,1mA,1Sec
