Description:
|

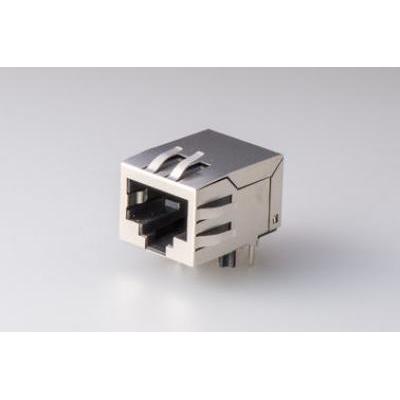

10 / 100BASE 1x1 Tab Down Transformer RJ45 without LED ( RMS-007A-08W6-NL-M )
|
|
Applications:
|
10/100/1000Mbps
|
|
Mounting Type:
|
Insert Board
|
|
Orientation:
|
90° Angle (Right) Side enter
|
|
Termination:
|
Solder
|
|
LED Color:
|
NO
|
|
Shielding:
|
Shielded
|
|
Electrical
|
|||||
|
1. Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
2. High performance for maximum EMI suppression 3. 350uH minimum OCL with 8mA bias current |
|||||
|
Current rating:
|
1.5A
|
||||
|
Voltage rating:
|
125V AC
|
||||
|
Insulation resistance:
|
500MΩ min
|
||||
|
Contact resistance:
|
30MΩ max
|
||||
|
Withstanding voltage:
|
AC 1500V RMS 50Hz or 60Hz 1 min
|
||||
|
Insertion loss:
|
-1.2dB Maximum at 100kHz-100MHz
|
||||
|
Return loss:
|
-18dB minimum at 1MHz-30MHz
-14dB minimum at 30MHz-60MHz -12dB minimum at 60MHz-80MHz |
||||
|
Common mode rejection
|
-30dB minimum at 1MHz-100MHz
|
||||
|
Cross talk:
|
-30dB minimum at 1MHz-100MHz
|
||||
|
Mechanical
|
|||||
|
Insertion force:
|
2 contacts 350g
4 contacts 500g 6 contacts 750g 8 contacts 900g 10 contacts 1050g |
||||
|
Retention strength:
|
7.7KG.F min between jack and plug
|
||||
|
Durability:
|
800 mating cycles min
|
||||
|
Material
|
|||||
|
Housing:
|
ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
|
||||
|
Contact wire:
|
Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel
|
||||
|
Shield:
|
0.20-0.25mm thickness brass with tin plated
|
||||
|
Gold plating:
|
3u", 6u", 15u", 30u", 50u"
|
||||
|
LED specifications:
|
Standard LED color
|
LED wavelength
|
Forward
(V max)
|
Typical (V TYP)
|
Luminous intensity
|
|
Green
|
560-580 nm
|
2.5V
|
2.1-2.2V
|
9-25 MCD
|
|
|
Yellow
|
580-610 nm
|
2.5V
|
2.1-2.2V
|
9-30 MCD
|
|
|
Orange
|
580-610 nm
|
2.5V
|
2.1-2.2V
|
50-100 MCD
|
|
|
|||||
|
RoHS peak wave solder
|
RoHS-5 peak wave solder temperature rating 235 ±5°C
|
||||
|
|
RoHS-6 peak wave solder temperature rating 260 ±5°C
|
||||
|
Operating and storage temperature
|
|||||
|
Operating temperatures:
|
-40 to 85°C
|
||||
|
Storage temperatures:
|
-40 to 85°C
|
||||
|
Applications
|
|||||
|
Networking products:
|
NIC, hub, switch, router, bridge, work
|
||||
|
Station:
|
PC/system, printer, server, NB,ia cable modem, XDSL application, set-top-box
|
||||
