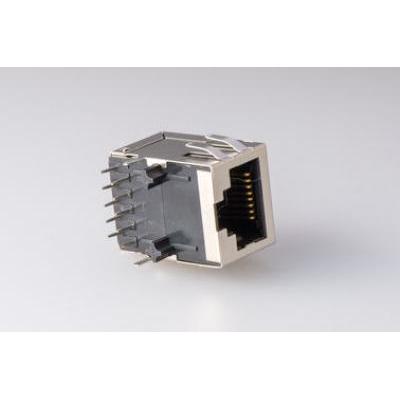

100 Base LAN RJ45 with Transformer Tab Down Connector 1 Port 21.1mm

Specifications

Description:	100 Base LAN RJ45 With Transformer Tab Down Connector 1 Port 21.1mm
Applications:	10/100/1000Mbps
Mounting Type:	Insert Plating
Orientation:	90° Angle (Right) Side enter
Termination:	Solder
LED Color:	NO
Shielding:	Shielded

Feature:
1. Complies with IEEE standards and all 10/100 Ethernet specifications including 350uH

with 8MA DC bias
2. Contact: Phosphor Bronze, 6u-inch gold flashed unless specified
3. Housing: Thermoplastic LCP UL94V-0 rated
4. Operating Temperature: 0℃ --70℃
5. Storage temperature: -40℃--85℃

Peak reflow temperature rating 245℃

1. Minimum1500Vrms isolation per IEEE 802.3requirement

Electrical Specifications:
1. Turns Ratio: Tx & Rx+1:1±5%
2. Insertion Loss:1-30MHz:-1.0dB Max
3. Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4. Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5. Crosstalk:1-100MHz:-30dB Min
6. OCL:100KHz,0.1V,8MADC:350uH Min

7. Hi-Pot:1500VAC,1mA,1Sec
