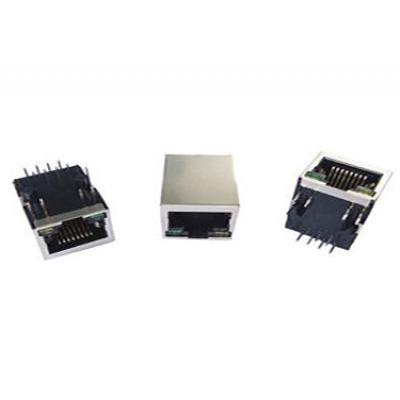

PCB Jack 1- port RJ45 Connector with LED 8 pin Shielded and Through Hole Plug

< >

Product Details:

Place of Origin:	Shen Zhen, China
Brand Name:	OEM/ODM
Certification:	ISO9001,SGS,UL,CE,REACH
Part Number:	RJ45-049D-08H0

Payment & Shipping Terms:

Packaging Details:	*80 pcs in 1 tray,7 tray in 1 small carton, which is 31.52419 CM,2 Small carton in a big carton which is 5132.521 CM 8.6 KGS (1120 pcs) of each big carton*
Delivery Time:	3-30 work days
Payment Terms:	T/T, L/C, D/A, D/P, PAYPAL
Supply Ability:	2,000,000pcs/Month

Detailed Product Description

PCB Jack 1- port RJ45 Connector with LED 8-pin Shielded and Through Hole Plug

Specifications

Feature:
1. Complies with IEEE standards and all 10/100 Ethernet specifications including 350uH with 8MA DC bias
2. Contact: Phosphor Bronze, 6u-inch gold flashed unless specified
3. Housing: Thermoplastic LCP UL94V-0 rated
4. Operating Temperature: 0℃ --70℃
5. Storage temperature: -40℃--85℃

Peak reflow temperature rating 245℃

1. Minimum1500Vrms isolation per IEEE 802.3requirement

Electrical Specifications:

1.Turns Ratio: Tx & Rx+1:1±5%
2. Insertion Loss:1-30MHz:-1.0dB Max
3. Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4. Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5. Crosstalk:1-100MHz:-30dB Min
6. OCL:100KHz,0.1V,8MADC:350uH Min
7. Hi-Pot:1500VAC,1mA,1Sec

LED Specification

Standard LED Color:	LED Wavelength:	Forward (V MAX):	Typical (V TYP):	Luminous
Green	560-580 nm	2.5V	2.1-2.2V	9-25 MCD
Yellow	580-610 nm	2.5V	2.1-2.2V	9-30MCD
Orange	580-610 nm	2.5V	2.1-2.2V	50-100MCD
