RJ45 USB Connector

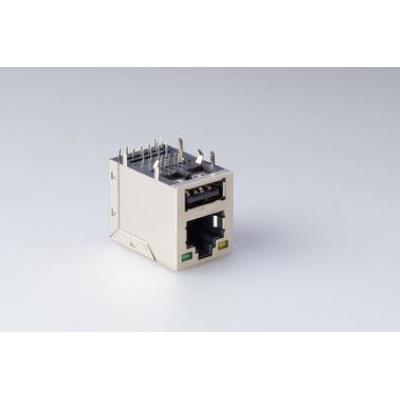

RJ45 USB 2.0 Stack Embedded Board, Rj45 Ethernet Jack Tab Up Without Transformers

< >

Product Details:

Place of Origin:	Shen Zhen, China
Brand Name:	OEM/ODM
Certification:	ISO 9001 ：2008 , RoHs , SGS
Part Number:	RJ45-USB-018

Payment & Shipping Terms:

Packaging Details:	*50 pcs in 1 tray , 10 tray in 1 carton , which is 31.52440 CM , 7.8 KGS (500pcs ) in 1 carton*
Delivery Time:	10 - 25 work days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	5,000,000pcs/Month

Detailed Product Description

RJ45 USB 2.0 Stack Embedded Board Tab Up Without Transformers

Specifications:

Description:	RJ45 USB 2.0 Stack Embedded Board Tab Up Without Transformers
Applications:	10/100/1000 Mbps
Mounting Type:	Side Enter
Orientation:	90° Angle (Right)
Termination:	Solder
LED Color:	G/Y
Shielding:	Shielded, EMI, Finger

Material:

1. Housing Material: Glass Filled Polyester(UL94V-0),ABS.PBT,NYLON
2. Contact Material: Phosphor Bronze t=0.35mm.
3. Plating: Contact Area-Selecting Gold Plating.
4. Shield: Copper Alloy 0.20 Thickness Plating Ni.
5. LED: Option

Feature:
1. Reduce EMI Radiation, Improve EMI Performance.
2. Designed For Network Interface Card Application.
3. Designed To Meet IEEE802.3u Requirement.
4. Suitable for CAT 3, 5, 6 UTP cable or better

Electrical:

Current Rating 1.5 AMP
Voltage Rating 1.25 VAC
Insulation Resistance 500MΩMin
Withstanding Resistance 1000VAC RMS 50Hz or 60Hz 1 Minute
Contact Resistance 30mΩMax

Mechanical:

1. Durability:750 CYCLES MIN

2. PCB Retention pre-solder:1LB MIN

Environmental:
1. Storage Temperature -40°C~80°C Relative Humidity <80%.
2. Operation Temperature 0°C~+70°C
