RJ45 USB Connector

Single Port RJ45 + USB Female Connector Tab Up With 10 / 100 / 1000 Base Transformer

< >

Product Details:

Place of Origin:	Shen Zhen, China
Brand Name:	OEM/ODM
Certification:	ISO9001,SGS,UL,CE,REACH
Model Number:	RJ45-USB-026S

Payment & Shipping Terms:

Packaging Details:	*50 pcs in 1 tray,10 tray in 1 small carton, which is 31.52419 CM,2 Small carton in a big carton which is 5132.521 CM 8.6 KGS (1120 pcs) of each big carton*
Delivery Time:	3-30 work days
Payment Terms:	T/T, L/C, D/A, D/P, PAYPAL
Supply Ability:	2,000,000pcs/Month

Detailed Product Description

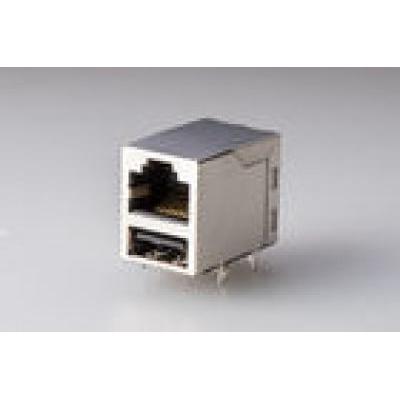

Single Port RJ45 USB Connector Tab Up with 10 / 100 / 1000 Base Transformer

1x1 Tab Up RJ45 with Single USB and w/o led RBA-026S-12W0-NL

Specifications

Feature:
1.Complies with IEEE standards and all 10/100 Ethernet specifications including 350uH

with 8MA DC bias
2.Contact:Phosphor Bronze, 6u-inch gold flashed unless specified
1.Housing:Thermoplastic LCP UL94V-0 rated
2.Operating Temperature:0℃ --70℃
3.Storage temperature:-40℃--85℃

Peak reflow temperature rating 245℃

1.Minimum1500Vrms isolation per LEEE 802.3requirement

Electrical Specifications:
1.Turns Ratio: TX & Rx+1:1±5%
2.Insertion Loss:1-30MHz:-1.0dB Max
3.Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4.Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5.Crosstalk:1-100MHz:-30dB Min
6.OCL:100KHz,0.1V,8MADC:350uH Min

7.Hi-Pot:1500VAC,1mA,1Sec
