RJ45 USB Connector

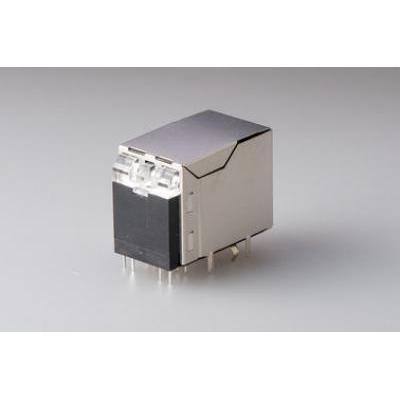

Silver RJ45 USB Connector Female Socket 8p8c Single Port Side Entry Modular Jack

  • Silver RJ45 USB Connector Female Socket 8p8c Single Port Side Entry Modular Jack

Product Details:



Place of Origin:
Shen Zhen, China
Brand Name:
OEM/ODM
Certification:
ISO 9001 ：2008 , RoHs , SGS
Part Number:
RJ45-USB--023F

Payment & Shipping Terms:

Packaging Details:
50 pcs in 1 tray , 10 tray in 1 carton , which is 31.5*24*40 CM , 7.8 KGS (500pcs ) in 1 carton
Delivery Time:
10 - 25 work days
Payment Terms:
L/C, D/A, D/P, T/T
Supply Ability:
5,000,000pcs/Month




Download

Inquiry

Detailed Product Description

RJ45 USB Connector Female Socket 8p8c Single Port Side Entry Modular Jack

Specifications:

Description:
RJ45 USB Connector Female Socket 8p8c Single Port Side Entry Modular Jack
Applications:
10/100/1000 Mbps
Mounting Type:
Side Enter
Orientation:
90° Angle (Right)
Termination:
Solder
LED Color:
G/Y
Shielding:
Shielded, EMI, Finger


Material:
1. Housing Material: Glass Filled Polyester(UL94V-0),ABS.PBT,NYLON
2. Contact Material: Phosphor Bronze t=0.35mm.
3. Plating: Contact Area-Selecting Gold Plating.
4. Shield: Copper Alloy 0.20 Thickness Plating Ni.
5. LED: Option

Feature:
1. Reduce EMI Radiation, Improve EMI Performance.
2. Designed for Network Interface Card Application.
3. Designed to Meet IEEE802.3u Requirement.
4. Suitable for CAT 3, 5, 6 UTP cable or better

Electrical:
Current Rating 1.5 AMP
Voltage Rating 1.25 VAC
Insulation Resistance 500MΩMin
Withstanding Resistance 1000VAC RMS 50Hz or 60Hz 1 Minute
Contact Resistance 30mΩMax

Mechanical:
1. Durability:750 CYCLES MIN
2. PCB Retention pre-solder:1LB MIN

Environmental:
1. Storage Temperature -40°C~80°C Relative Humidity <80%.
2. Operation Temperature 0°C~+70°C
