RJ45 USB Connector

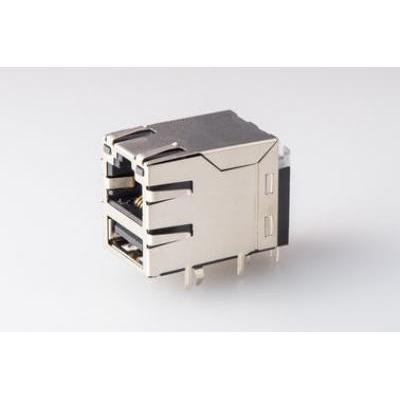

Shielded RJ45 USB Connector RJ45 Cat 5 8P8C Ethernet Female Jack with Magnetic

  • Shielded RJ45 USB Connector RJ45 Cat 5 8P8C Ethernet Female Jack with Magnetic

Product Details:



Place of Origin:
Shen Zhen, China
Brand Name:
OEM/ODM
Certification:
ISO9001 : 2008 , SGS , RoHs
Part Number:
RJ45-USB-026

Payment & Shipping Terms:

Packaging Details:
20pcs in 1 tray
Delivery Time:
7 - 10 Work Days
Payment Terms:
L/C, D/A, D/P, T/T
Supply Ability:
5,000,000 PCS / Month




Download

Inquiry

Detailed Product Description

Shielded RJ45 USB Connector 8P8C Ethernet Female Jack with Magnetic

Specifications
1.Characteristics:





1)RJ45 Connector with integrated transformer/common mode choke
2)Available in SMD, THT and THT with USB
3)350µH min. OCL with 8mA bias
4)Complies with IEEE 802.3
5)Extended temperature range -40°C to +85°C available
6)PoE / PoE+
2. Operation/Application:



1)xDSL Modems
2)Embedded PC
3)LAN Applications
4)Hub, Router, Switches
3. Electrical Characteristics:
1) Shielded
With/Without


Material:
1. Housing Material: Glass Filled Polyester(UL94V-0),ABS.PBT,NYLON
2. Contact Material: Phosphor Bronze t=0.35mm.
3. Plating: Contact Area-Selecting Gold Plating.
4. Shield: Copper Alloy 0.20 Thickness Plating Ni.
5. LED: Option

Feature:
1. Reduce EMI Radiation, Improve EMI Performance.
2. Designed for Network Interface Card Application.
3. Designed To Meet IEEE802.3u Requirement.
4. Suitable for CAT 3, 5, 6 UTP cable or better

Electrical:
Current Rating 1.5 AMP
Voltage Rating 1.25 VAC
Insulation Resistance 500MΩMin
Withstanding Resistance 1000VAC RMS 50Hz or 60Hz 1 Minute
Contact Resistance 30mΩMax

Mechanical:
1. Durability:750 CYCLES MIN
2. PCB Retention pre-solder:1LB MIN

Environmental:
1. Storage Temperature -40°C~80°C Relative Humidity <80%.
2. Operation Temperature 0°C~+70°C
Lead-free process, compliant RoHS
