RJ45 Female Connector

Shield Side Entry Female RJ45 Network Connector 8p8c Telecom PCB Jack ( RoHS

< >

Product Details:

Place of Origin:	Shen Zhen, China
Brand Name:	OEM/ODM
Certification:	ISO9001 : 2008 , SGS , RoHs , UL
Part Number:	RJ45-1056-208003

Payment & Shipping Terms:

Packaging Details:	100 pcs in 1 tray , 36 tray ( 2500pcs ) in carton ;
Delivery Time:	7 - 10 Work Days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	5,000,000 PCS / Month

Detailed Product Description

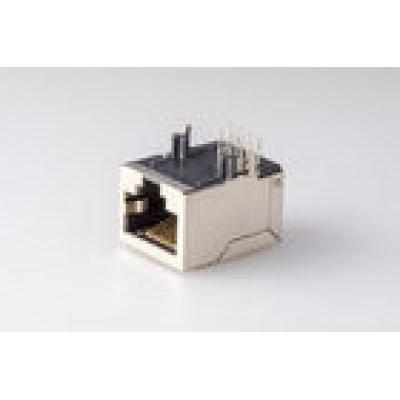

Shield Side Entry RJ45 Female Network Connector, 8p8c Telecom PCB Jack (RoHS

Specifications

Series :	Connectors, Interconnects
Connector Type :	RJ45 Female Jack
Mounting Type :	Thru-Hole
Orientation :	10P8C Side Enter
Termination :	Solder
LED Color :	X / X
Shielding :	Shielded

Electrical Requirement:

1. RATING VOLTAGE: 150V AC MAX.

2. RATING CURRENT: 1 AMPHERES MAX.

3. CONTACT RESISTANCE: [30] MILLIOHMS MAX. (INITIAL), [50] MILLIOHMS MAX. (FINAL).

4. DIELECTRIC WITHSTANDING VOLTAGE: NO CREEPING DISCHARGE OR FLASHOVER SHALL OCCUR.

5. CURRENT LEAKAGE: 1MA MAX. [500] VAC FOR 1MINUTE.

6. TEST BETWEEN ADJACENT CIRCUITS OF UNMATED CONNECTOR

MECHNICAL:

1. HOUSING MATERIAL: GLASS FILLED POLYESTER(UL94V-0).
2. CONTACT MATERIAL: PHOSPHOR BRONZE T=0.46MM (C5 100).
3. PLATING: GLOD PLATING OVER NICKEL.
4. DURRABILITY: 750 CYCLES MIN.
5. PCB RETENTION PRE-SOLDER: 1 LB MIN.
6. PCB RETENTION POST-SOLDER: 10 LB MIN.

ENVIRONMENTAL:
1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃ (5-10 seconds)
