RJ45 Female Connector

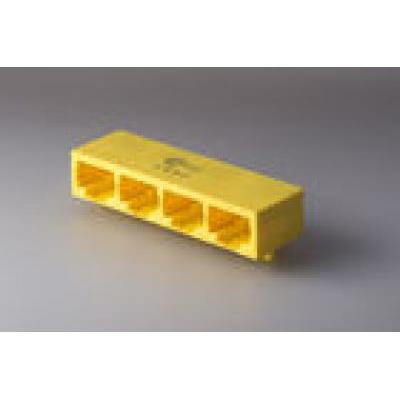

Full Plastic Yellow RJ45 Female Connector, Multi-port RJ45 8P8C 1 X 4 Port Without LED Gold Plated

< >

Product Details:

Place of Origin:	Shen Zhen , China
Brand Name:	OEM/ODM
Certification:	ISO9001 : 2008 , SGS , RoHs
Part Number:	RJ45-1051-208050

Payment & Shipping Terms:

Packaging Details:	20pcs in 1 tray
Delivery Time:	7 - 10 Work Days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	5,000,000 PCS / Month

Detailed Product Description

Full Plastic RJ45 Female Connector 8P8C 1X 4 Port Without LED Gold Plated

Specifications

Series :	Connectors, Interconnects
Connector Type :	RJ45 Modular Jack
Mounting Type :	Thru-Hole
Orientation :	8P8C Side Enter
Termination :	Solder
LED Color :	Without LED
Shielding :	No Shield
Plastic :	Full Plastic Yellow

ELECTRICAL:
1. VOLTAGE RATING:125 VAC RMS.
2. CURRENT RATING:1.5 AMP.
3. CONTACT RESISTANCE: 50 milliohms max.
4. INSULATION RESISTANCE: 500 me ohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
RESISTANCE:1000V AC RMS 50Hz. 1min.

MECHNICAL:
1. HOUSING MATERIAL: glass filled polyester(UL94V-0).
2. CONTACT MATERIAL: phosphor bronze T=0.46mm (C5 100).
3. PLATING: Gold plating over nickel.
4. DURRABILITY: 750 cycles min.
5. PCB RETENTION PRE-SOLDER: 1 LB min.
6. PCB RETENTION POST-SOLDER: 10 LB min.

ENVIRONMENTAL:
1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃ (5-10 seconds)
