RJ45 Female Connector

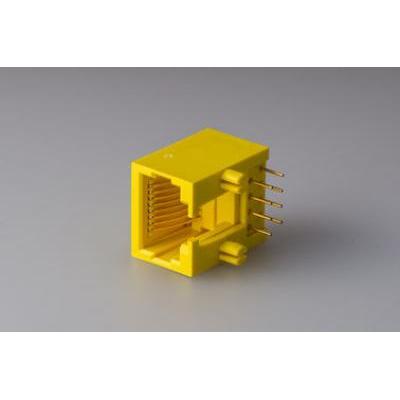

Plastic RJ45 Female Connector 8P8C, RJ45 Single Port Modular Jack Yellow Gold Plated

< >

Product Details:

Place of Origin:	Shen Zhen, China
Brand Name:	OEM/ODM
Certification:	ISO9001 : 2008 , SGS , RoHs , UL
Part Name:	56 8P8C Single Port Modular Jack Yellow

Payment & Shipping Terms:

Packaging Details:	100 pcs in 1 tray , 36 tray ( 2500pcs ) in carton ;
Delivery Time:	7 - 10 Work Days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	5,000,000 PCS / Month

Detailed Product Description

Shielded RJ45 Female Connector 8P8C Single Port Modular Jack Yellow Gold Plated

Specifications:

Series :	Connectors, Interconnects
Connector Type :	RJ45 Modular Jack
Mounting Type :	Thru-Hole
Orientation :	8P8C Side Enter
Termination :	Solder
LED Color :	NO
Shielding :	No Shield

ELECTRICAL:

1. VOLTAGE RATING: 125 VAC RMS.
2. CURRENT RATING: 1.5 AMP.
3. CONTACT RESISTANCE: 50 milliohms max.
4. INSULATION RESISTANCE: 500 me ohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
RESISTANCE: 1000V AC RMS 50Hz. 1min.

MECHNICAL:
1. HOUSING MATERIAL: glass filled polyester(UL94V-0).
2. CONTACT MATERIAL: phosphor bronze T=0.46mm (C5 100).
3. PLATING: Gold plating over nickel.
4. DURRABILITY: 750 cycles min.
5. PCB RETENTION PRE-SOLDER: 1 LB min.
6. PCB RETENTION POST-SOLDER: 10 LB min.

ENVIRONMENTAL:
1. STORAGE: -40℃ TO +85℃.
2. OPERATION: 0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE: 230-250℃ (5-10 seconds)
