RJ45 Female Connector

4 Port RJ45 8P8C Female Jack 90 Degree Insert Plant with Shielded

< >

Product Details:

Place of Origin:	Shen Zhen, China
Brand Name:	OEM/ODM
Certification:	ISO9001 : 2008 , SGS , RoHs , UL
Part Number:	RJ45-001

Payment & Shipping Terms:

Packaging Details:	20 pcs in 1 tray
Delivery Time:	1-2 Weeks
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	50000/day

Detailed Product Description

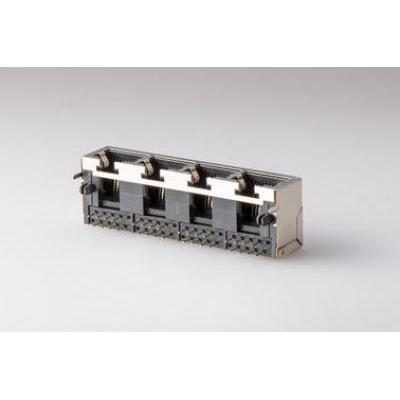

4 Port RJ45 8P8C Female Jack 90 Degree Insert Plant With Shielded

Feature:

Electrical:
1. voltage Rating:125 Val
2. Insulation Resiitance:500M min
3. Withstanding Voltage: AC 1000vxRMS50HZ or 60/hz1min

Mechanical:
1.Operating:750 cycles min

Material
1. Housing : PBT(vl94v-0) RA66(vl94v-0) RA46(vl94v-0)
2. Contact Wire :Diameter 0.45mm phosphor bronze gold plating over nickel
3. Gold plating :3u inch6u inch150u inch30u inch50u inch

Environmental:
1. Working Temperature:-20℃to 75℃
2. Storage Temperature: - 45℃to 85℃
