Magnetic RJ45 Jack

Products

< >

RJ45 Connector Product Details:

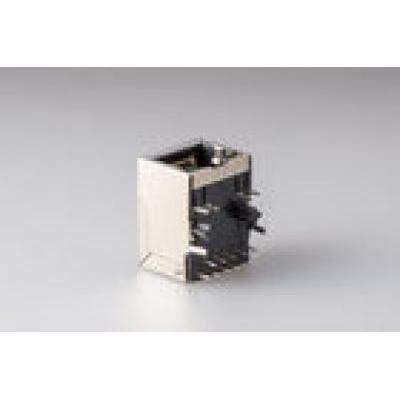

Description :	Side Enter Magnetic RJ45 Jack insert Plating 10P 1x1 Port With Led
Mounting Type :	Insert Plating
Series :	Connectors, Interconnects
Applications :	10/100 /1000Mbps
Connector Type :	Female
Orientation :	90° Angle (Right) Side enter
Application :	10/100 /1000Mbps
Termination :	Solder
Shielding :	Shielded
LED Color :	Green

Feature:

1. Complies with IEEE standards and all 10/100 Ethernet specifications including 350uH with 8MA DC bias

2. Contact: Phosphor Bronze, 6u-inch gold flashed unless specified

3. Housing: Thermoplastic LCP UL94V-0 rated

4. Operating Temperature: 0℃ --70℃

5. Storage temperature: -40℃--85℃

Peak reflow temperature rating 245℃

1. Minimum1500Vrms isolation per LEEE 802.3requirement

Electrical Specifications:

1. Turns Ratio: Tx & Rx+1:1±5%

2. Insertion Loss:1-30MHz: -1.0dB Max

3. Return Loss:1-30MHz: -16dB Min; 60-80MHz:12dB Min

4. Common Mode Rejection:1-100MHz: -30dB Min;200MHz: -20dB Min

5. Crosstalk:1-100MHz: -30dB Min

6. OCL:100KHz,0.1V,8MADC: 350uH Min

7. Hi-Pot:1500VAC,1mA,1Sec
