Place of Origin:
|
Shen Zhen, China
|
|
Brand Name:
|
OEM/ODM
|
|
Certification:
|
ISO9001-2008 , ROHS , UL , SGS
|
|
Part Number:
|
RJ45-003D-08A6
|
|
Packaging Details:
|
110pcs/reel; 550pcs/ Catron
|
|
Delivery Time:
|
24-30 work days
|
|
Payment Terms:
|
D/A, D/P, L/C, T/T, PayPal
|
|
Supply Ability:
|
1000,000pcs/Month
|
|
Description :
|

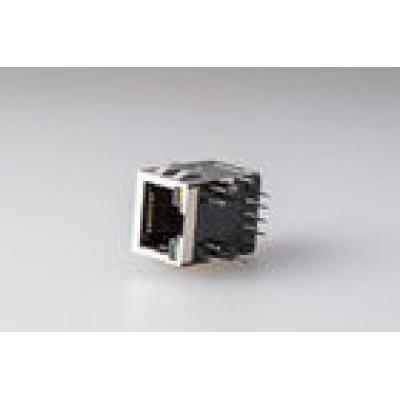

Single Port 8 Pin Tab Up Magnetic RJ45 Jack PCB Filter With LED / EMI Optional
|
|
Port :
|
Single Port
|
|
Terminal :
|
Phosphor Copper
|
|
Series :
|
Connectors, Interconnects
|
|
Applications :
|
10/100 /1000Mbps
|
|
Connector Type :
|
Female
|
|
Orientation :
|
90° Angle (Right) Side enter
|
|
Application :
|
10/100 /1000Mbps
|
|
Termination :
|
Solder
|
|
Shielding :
|
Shielded
|
|
LED Color :
|
Yellow, Green
|
|
Electrical
|
|||||
|
1. Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
2. High performance for maximum EMI suppression
3. 350uH minimum OCL with 8mA bias current
|
|||||
|
Current rating
|
1.5A
|
||||
|
Voltage rating
|
125V AC
|
||||
|
Insulation resistance
|
500MΩ min
|
||||
|
Contact resistance
|
30MΩ max
|
||||
|
Withstanding voltage
|
AC 1500V RMS 50Hz or 60Hz 1 min
|
||||
|
Insertion loss
|
-1.2dB Maximum at 100kHz-100MHz
|
||||
|
Return loss
|
-18dB minimum at 1MHz-30MHz
-14dB minimum at 30MHz-60MHz
-12dB minimum at 60MHz-80MHz
|
||||
|
Common mode rejection
|
-30dB minimum at 1MHz-100MHz
|
||||
|
Cross talk
|
-30dB minimum at 1MHz-100MHz
|
||||
|
Mechanical
|
|||||
|
Insertion force
|
2 contacts 350g
4 contacts 500g
6 contacts 750g
8 contacts 900g
10 contacts 1050g
|
||||
|
Retention strength
|
7.7KG.F min between jack and plug
|
||||
|
Durability
|
800 mating cycles min
|
||||
|
Material
|
|||||
|
Housing
|
ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
|
||||
|
Contact wire
|
Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel
|
||||
|
Shield
|
0.20-0.25mm thickness brass with tin plated
|
||||
|
Gold plating
|
3u", 6u", 15u", 30u", 50u"
|
||||
|
LED specifications
|
Standard LED color
|
LED wavelength
|
Forward (V max)
|
Typical (V TYP)
|
Luminous intensity
|
|
Green
|
560-580 nm
|
2.5V
|
2.1-2.2V
|
9-25 MCD
|
|
|
Yellow
|
580-610 nm
|
2.5V
|
2.1-2.2V
|
9-30 MCD
|
|
|
Orange
|
580-610 nm
|
2.5V
|
2.1-2.2V
|
50-100 MCD
|
|
|
1 LED intensity/wavelength measured with photo research PR-650 colormeter
2 With a forward current of 20mA, absolute maximum ratings (Ta=25°C)
|
|||||
|
RoHS peak wave solder
|
RoHS-5 peak wave solder temperature rating 235 ±5°C
|
||||
|
|
RoHS-6 peak wave solder temperature rating 260 ±5°C
|
||||
|
Operating and storage temperature
|
|||||
|
Operating temperatures
|
-40 to 85°C
|
||||
|
Storage temperatures
|
-40 to 85°C
|
||||
|
Applications
|
|||||
|
Networking products
|
NIC, hub, switch, router, bridge, work
|
||||
|
Station
|
PC/system, printer, server, NB,ia cable modem, XDSL application, set-top-box
|
||||
