Magnetic RJ45 Jack

Products

< >

Packaging Details:	*80 pcs in 1 tray,7 tray in 1 small carton, which is 31.52419 CM,2 Small carton in a big carton which is 5132.521 CM 8.6 KGS (1120 pcs) of each big carton*
Delivery Time:	24-30 work days
Payment Terms:	D/A, D/P, L/C, T/T,paypal
Supply Ability:	1000,000pcs/Month

RJ45 Connector Product Details:

Terminal :	Phosphor Copper

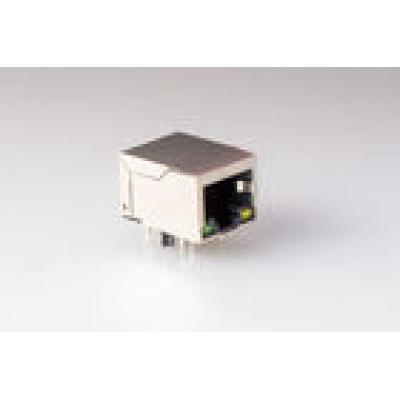

Description :	21.6mm 10P10C Magnetic RJ45 Jack Single Port Ethernet Stacked With Shield
Plastic :	PBT
Soldering Temperature :	255 ℃ 5 Seconds
Mounting Type :	Insert Plate
Application :	10 / 100 / 1000 MB
Shield :	Brass Alloy
Terminal :	Phosphor Copper
LED Color :	Yellow, Green
Orientation :	90 Degree, Side Enter

Electrical:

1. Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement

2. High performance for maximum EMI suppression

3. 350uH minimum OCL with 8mA　bias current

4. Current rating 1.5 amps

5. Voltage rating 125vac

6. Insulation resistance 500 MΩmin

7. Contact resistance 30 MΩmax

8. Withstanding voltage AC 1500V RMS 50Hz or 60Hz 1 min

9. Insertion loss: -1.2dB maximum @100KHz-100MHz

10. Return loss: -18dB minimum @1MHz-30MHz

11. 14dB minimum @30MHz-60MHz

12. 12dB minimum @60MHz-80MHz

13. 10dB minimum @80MHz-100MHz

14. Common mode rejection: -30dB minimum @1MHz-100MHz

15. Cross talk: -30dB minimum @1MHz-100MHz

Operating and storage temperatures:

1. Operating temperatures: -40 to 85℃

2. Storage temperatures: -40 to 85℃

Application:

1. Networking products: NIC, HUB, switch, router, bridge, work

2. Station: PC/system, printer, server, NB, IA cable modem, XDSL application, set-top-box
