Magnetic RJ45 Jack

Products

< >

Packaging Details:	*80 pcs in 1 tray,7 tray in 1 small carton, which is 31.52419 CM,2 Small carton in a big carton which is 5132.521 CM 8.6 KGS (1120 pcs) of each big carton*
Delivery Time:	3-30 work days
Payment Terms:	T/T, L/C, D/A, D/P, PAYPAL
Supply Ability:	2,000,000pcs/Month

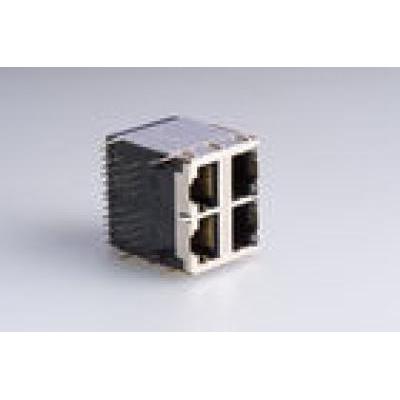

2 X 2 Port RJ45 With10 / 100/1000 Mbps Transformer 90 Degree RJ45 Jack

RJ45 Connector Product Details:

Specifications

Feature:

1.Complies with IEEE standards and all 10/100 Ethernet specifications including 350uH with 8MA DC bias

2.Contact: Phosphor Bronze, 6u-inch gold flashed unless specified

1.Housing: Thermoplastic LCP UL94V-0 rated

2.Operating Temperature:0℃ --70℃

3.Storage temperature: -40℃--85℃

Peak reflow temperature rating 245℃

1.Minimum1500Vrms isolation per IEEE 802.3requirement

Electrical Specifications:

1.Turns Ratio: Tx & Rx+1:1±5%

2.Insertion Loss:1-30MHz: -1.0dB Max

3.Return Loss:1-30MHz: -16dB Min; 60-80MHz:12dB Min

4.Common Mode Rejection:1-100MHz: -30dB Min;200MHz:-20dB Min

5.Crosstalk:1-100MHz: -30dB Min

6.OCL:100KHz,0.1V,8MADC: 350uH Min

7.Hi-Pot:1500VAC,1mA,1Sec
