Magnetic RJ45 Jack

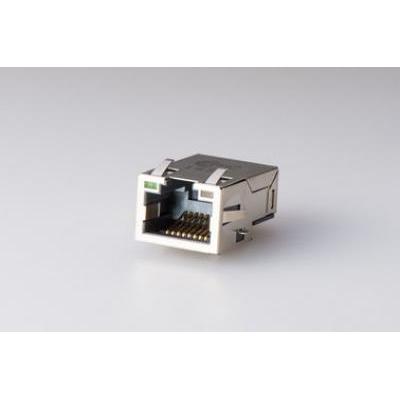

SMT RJ45 Connectors Surface Mount 10/100 Base - T Female PCB Jack

< >

Product Details:

Place of Origin:	Shen Zhen, China
Brand Name:	OEM/ODM
Certification:	ISO9001-2008
Part Number:	RJ45-425B-14F4

Payment & Shipping Terms:

Packaging Details:	110pcs/reel; 550pcs/ Catron
Delivery Time:	24-30 work days
Payment Terms:	D/A, D/P, L/C, T/T, PayPal
Supply Ability:	1000,000pcs/Month

Detailed Product Description

RJ45 Connector Product Details:

Application :	Networking products: NIC, HUB, Switch, Router, Bridge. Station: PC/system, Printer, Server, NB, IA Cable Modem, XDSL application, Set-Top-Box, Camera, Computer.
Plastic :	HIGH TEMP.LCP
Application :	SMD 10 / 100 / 1000 MB
Mounting Type :	SMD And Skinning
Soldering Temperature :	255 ℃ 5 Seconds
Orientation :	90 Degree, Side Enter
Shield :	Brass Alloy
Termination :	Solder
LED Color	Yellow, Green, Red, Blue, Double Color Option

Feature:

1. Complies with IEEE standards and all 10/100 Ethernet specifications including 350uH with 8MA DC bias
2. Contact: Phosphor Bronze, 6u-inch gold flashed unless specified
3. Housing: Thermoplastic LCP UL94V-0 rated
4. Operating Temperature: 0℃ --70℃
5. Storage temperature: -40℃--85℃

Peak reflow temperature rating 245℃
1. Minimum1500Vrms isolation per IEEE 802.3requirement

Electrical Specifications:

1. Turns Ratio: Tx & Rx+1:1±5%
2. Insertion Loss:1-30MHz:-1.0dB Max
3. Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4. Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5. Crosstalk:1-100MHz:-30dB Min
6. OCL:100KHz,0.1V,8MADC:350uH Min

7. Hi-Pot:1500VAC,1mA,1Sec
