POE RJ45 Jack

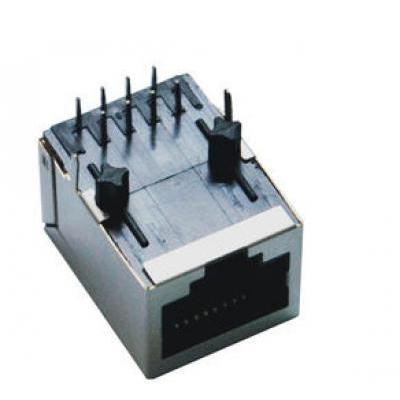

Magnetic Modules POE RJ45 Jack, POE RJ45 Connector Female Without LED And Shielded Insert Plate

  • Magnetic Modules POE RJ45 Jack, POE RJ45 Connector Female Without LED And Shielded Insert Plate

Product Details:

Place of Origin:
Shen Zhen, China
Brand Name:
OEM/ODM
Certification:
ISO9001,SGS,UL,CE,REACH
Model Number:
RJ45-013A-08W0




Payment & Shipping Terms:

Packaging Details:
80 pcs in 1 tray,7 tray in 1 small carton, which is 31.5*24*19 CM,2 Small carton in a big carton which is 51*32.5*21 CM 8.6 KGS (1120 pcs) of each big carton
Delivery Time:
3-30 work days
Payment Terms:
T/T, L/C, D/A, D/P, PAYPAL
Supply Ability:
2,000,000pcs/Month




Download

Inquiry

Detailed Product Description

Magnetic POE RJ45 Modules Jack Female With LED And Shielded Insert Plate

Specifications

Feature:
1. Complies with IEEE standards and all 10/100 Ethernet specifications including 350uH with 8MA DC bias
2. Contact: Phosphor Bronze, 6u-inch gold flashed unless specified
3. Housing: Thermoplastic LCP UL94V-0 rated
4. Operating Temperature: 0℃ --70℃
5. Storage temperature: -40℃--85℃

Peak reflow temperature rating 245℃

1. Minimum1500Vrms isolation per IEEE 802.3requirement

Electrical Specifications:

1.Turns Ratio: Tx & Rx+1:1±5%
2. Insertion Loss:1-30MHz:-1.0dB Max
3. Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4. Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5. Crosstalk:1-100MHz:-30dB Min
6. OCL:100KHz,0.1V,8MADC:350uH Min
7. Hi-Pot:1500VAC,1mA,1Sec

LED Specification

Standard LED Color:
LED Wavelength:
Forward      (V MAX):
Typical
 (V TYP):
Luminous
Green
560-580 nm
2.5V
2.1-2.2V
9-25 MCD
Yellow
580-610 nm
2.5V
2.1-2.2V
9-30MCD
Orange
580-610 nm
2.5V
2.1-2.2V
50-100MCD
