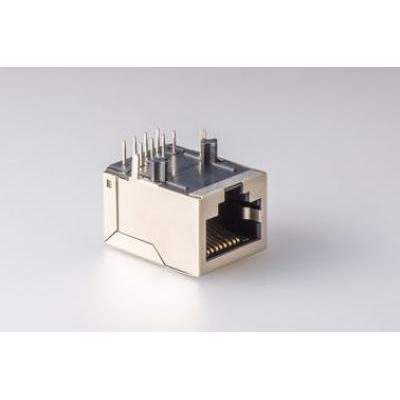

Full Shield Female POE RJ45 Jack Single part 10 / 100 Base-T Fast Jack CCTV

< >

Product Details:

Place of Origin:	Shen Zhen, China
Brand Name:	OEM/ODM
Certification:	ISO 9001 ：2008 , RoHs , SGS
Part Number:	RJ45-123D-10W0

Payment & Shipping Terms:

Packaging Details:	*80 pcs in 1 tray,7 tray in 1 small carton, which is 31.52419 CM,2 Small carton in a big carton which is 5132.521 CM 8.6 KGS (1120 pcs) of each big carton*
Delivery Time:	24 - 30 work days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	5,000,000pcs/Month

Detailed Product Description

Female RJ45 Dual USB 2.0 Connector Ethernet 10 / 100 Base -T / Shield / LED

Specifications

Description:	Female POE RJ45 Jack Single part 10 / 100 Base-T Fast Jack CCTV
Applications:	10/100 Mbps
Mounting Type:	Side Enter
Orientation:	90° Angle (Right)
Termination:	Solder
LED Color:	NO
Shielding:	Shielded , EMI Finger

Feature:
1. Complies with IEEE standards and all 10/100 Ethernet specifications including 350uH with 8MA DC bias
2. Contact: Phosphor Bronze, 6u-inch gold flashed unless specified
3. Housing: Thermoplastic LCP UL94V-0 rated
4. Operating Temperature:0℃ --70℃
5. Storage temperature: -40℃--85℃

Peak reflow temperature rating 245℃
1. Minimum1500Vrms isolation per IEEE 802.3requirement

Electrical Specifications:
1. Turns Ratio: Tx & Rx+1:1±5%
2. Insertion Loss:1-30MHz:-1.0dB Max
3. Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4. Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5. Crosstalk:1-100MHz:-30dB Min
6. OCL:100KHz,0.1V,8MADC:350uH Min
7. Hi-Pot:1500VAC,1mA,1Sec
