Lan Magnetics

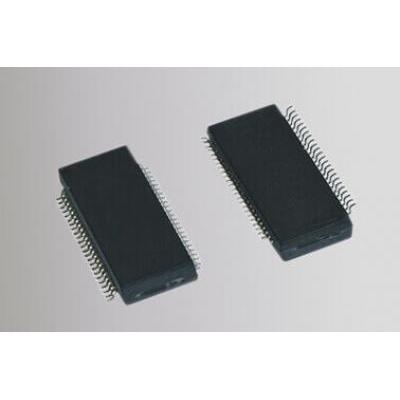

LAN Transformer Dual Port 10 / 100 / 1000Base-T FOR Ethernet Switches

< >

Product Details:

Place of Origin:	Shen Zhen, China
Brand Name:	OEM/ODM
Certification:	ISO9001 : 2008 , SGS , ROHS
Part Number:	LAN-02X

Payment & Shipping Terms:

Packaging Details:	100 pcs in 1 tray
Delivery Time:	7 - 10 Work Days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	5,000,000 PCS / Month

Detailed Product Description

Specifications

Feature:
1. IC grade transfer-molded package with stands 260℃ peak temperature profile
2. Complies with IEEE 802.3u and ANSI X3.263 standards including 350uH OCL with 8mA bias from 0℃ to +70℃
3. Operating Temperature: 0℃ --70℃
4. Storage temperature: -40℃--85℃

5. Lead-free process, compliant ROHS

Electrical Specifications:

1. Insertion loss:0.1~100MHz: -1.1dB Max

2. Rectum loss:30MHz: -18dB Min

60MHz: -14dB Min

80MHz: - 11.5dB Min

3. Cross Talk: 30MHz: -45dB Min

60MHz: -40dB Min

100MHz: -35dB Min

4. Differential to Common Mode Rejection: 30MHz: -42dB Min

50MHz: -37dB Min

100MHz: -33dB Min

5. Turn Ratio : 50KHz 0.5V:1CT:1CT±2%

6. Inductance(Ls): 100KHz, 0.1V, DC 8mA:350uH Min

7. Hi-Pot:1500V AC,0.5mA,1Sec
