HDMI Connector

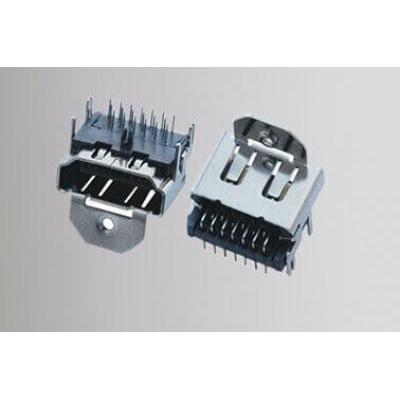

19P HDMI Connectors Female Dip Type, SMT HDMI Connector Three Row Single Ear Side Enter

< >

Product Details:

Place of Origin:	Shen Zhen, China
Brand Name:	OEM/ODM
Certification:	ISO9001 : 2008 , SGS , RoHs
Part Name:	HDMI Connector

Payment & Shipping Terms:

Packaging Details:	100pcs in 1 tray
Delivery Time:	7 - 10 Work Days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	5,000,000 PCS / Month

Detailed Product Description

19P HDMI Connectors Female Dip Type Three Row Single Ear Side Enter

Specifications
1. HDMI socket connector 19p female SMT/
2. Export to USA .UK Africa and so on
3. TS 16949&ROHS certificate
4. MOQ 1000pcs

MATERIAL
1. Body : LCP UL 94v-0 rated color /black
2. Shield :brass
3. Plating :tin plating over nickel
4. Contact : brass
5. Plating : gold plating over nickel on contact area
6.Tin /lead plating on terminal

ELECTRICAL SPECIFICATION
1. Operation collage :40vDC max
2. Current rating :0.5ampere contact
3. Contact resistance :30mΩ min
4. Insulation resistance :2000m Ω min
5. Dielectric with standing voltage:1200vAC

ENVIRONMENTAL
1. Operating temperature: -20°c to +85°c.
