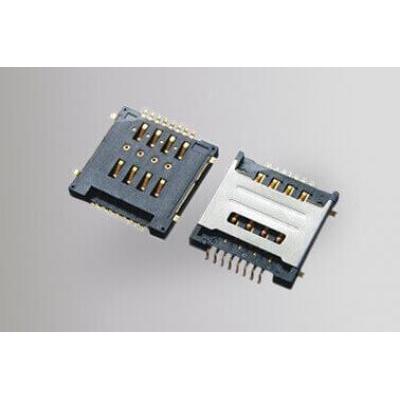

Double SIM Card Connector SMT 8Pins, Micro Sim Socket With Shielded Black Plastic

  • Double SIM Card Connector SMT 8Pins, Micro Sim Socket With Shielded Black Plastic

Product Details:

Place of Origin:
Shen Zhen, China
Brand Name:
OEM/ODM
Certification:
ISO 9001 ：2008 , ROHS , SGS
Part Number:
Double SIM Card Connector




Payment & Shipping Terms:

Packaging Details:
50 pcs in 1 tray , 10 tray in 1 carton , which is 31.5*24*40 CM , 7.8 KGS (500pcs ) in 1 carton
Delivery Time:
3 - 15work days
Payment Terms:
L/C, D/A, D/P, T/T
Supply Ability:
5,000,000pcs/Month




Download

Inquiry

Detailed Product Description

Specifications

Pitch:
2.54mm
Environmental temperature:
-45--+105
Voltage rating:
5V(AC.DC)Max
Current rating:
10mA(AC.DC)Max
Withstand voltage:
500V AC/1Minute
Insulation resistance:
≥1000Ω
Contact resistance:
≤30mΩ
Life:
10000 Cycles
MATERIAL:
Housing:
LCP UL94V-0
Card button:
LCP UL94V-0
Reed tab:
Tin-bronze QSn6.5-0.1 GB2066-89
PACKAGE:
Tape and Reel Package

1. MECHANICAL CHARACTERISTIC:

Durability 10,000 cycles min

2. ELECTRICAL CHARACTERISTIC:

Number of contacts(Optional)6pins or 8pins
Contact resistance: 50m Ω max
Insulation resistance: >1000M/500V DC

3. MATERIAL:

Housing: LCP, UL94V-0.Black.
Terminal: Copper Alloy, T=0.2mm

FINISH:
Terminal: 80u Min. Tin in Solder Area,3u Gold
               Over 500 Min, Nickel in Contact Area
