2.5mm Audio Jack

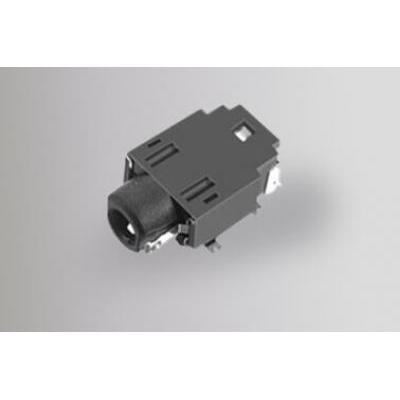

2.5mm 5 Pole SMT 8 Pin Audio Jack

  • 2.5mm 5 Pole SMT 8 Pin Audio Jack

Product Details:

Place of Origin:
Shen Zhen China
Brand Name:
OEM / ODM
Type:
Audio Jack
Part Number:
AJ-105-SMT

Payment & Shipping Terms:

Minimum Order Quantity:
5000
Shipment ways:
DHL,FEDEX,UPS,TNT,EMS, or by Sea
Delivery Time:
1-2 Weeks
Payment Terms:
L/C, D/A, D/P, T/T




Download

Inquiry

Detailed Product Description

Type: 2.5mm 5 Pole SMT 8 Pin Audio Jack
Application: Audio and Video
Feature: Metal, plastic
Color: Black
Certificate: RoHS
Material: Plastic, Copper, Alloy
Connector type: Audio jack
Plating: Tin, Nickel
Insulation Resistance: ≥100MΩ

Specifications:
Item
Standard
operating Temperature range
-30°C to +70°C
electrical performance
Rating
DC 30V 0.5A
output voltage
1V max, at 1mA 5V DC
contact resistance
100mΩ max
lifetime
5000cycles or above
durability
operating force
lever portion 70±40gf push portion 200±100gf
mechanical performance
travel
4 direction -25° - 0° - +25°
push portion 0.85±0.1mm
