Type :
|

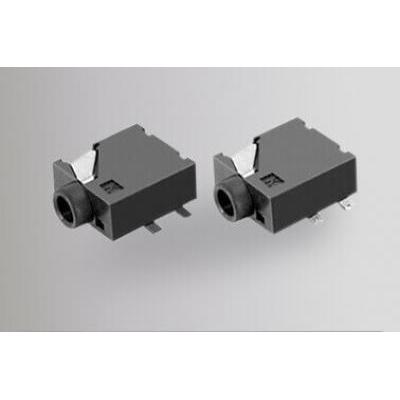

2.5mm 3 Pole SMT 5 Pin Audio Jack
|
|
Withstand Voltage :
|
AC500V (50Hz)/min
|
|
Rated Load :
|
DC 30V 0.5A
|
|
Actuating Force :
|
3~20N
|
|
Life :
|
5000 cycles
|
|
Temperature :
|
-30ºC~+70ºC
|
|
Contact Resistance :
|
≤0.03Ω
|
|
Insulation Resistance :
|
≥100MΩ
|
|
Specification :
|
Bore diameter 3.6mm,match 3.5mm plug
|
|
Feature :
|
Footprint is optional
|
|
Authentication :
|
Environmental
|
