90 Degree RJ45

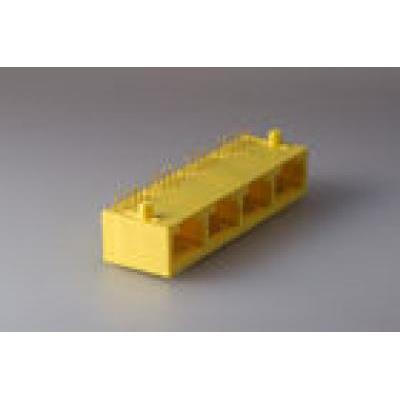

Full Plastic Yellow 90 Degree RJ45, Ethernet RJ45 Plug 8P8C 1 * 4 Port Without LED Gold Plated

  • Full Plastic Yellow 90 Degree RJ45, Ethernet RJ45 Plug 8P8C 1 * 4 Port Without LED Gold Plated

Product Details:

Place of Origin:
Shen Zhen, China
Brand Name:
OEM / ODM
Certification:
ISO9001 : 2008 , SGS , RoHs
Part Number:
RJ45-1051-208050




Payment & Shipping Terms:

Packaging Details:
20pcs in 1 tray
Delivery Time:
7 - 10 Work Days
Payment Terms:
L/C, D/A, D/P, T/T
Supply Ability:
5,000,000 PCS / Month




Download

Inquiry

Detailed Product Description

Full Plastic Yellow 90 Degree RJ45 8P8C 1 * 4 Port Without LED Gold Plated


Specifications

 Series :
 Connectors, Interconnects
Connector Type :
 RJ45 Modular Jack
Mounting Type :
 Thru-Hole
Orientation :
 8P8C Side Enter
Termination :
 Solder
LED Color :
 Without LED
Shielding :
 No Shield
Plastic :
Full Plastic Yellow

ELECTRICAL:

1. VOLTAGE RATING:125 VAC RMS.
2. CURRENT RATING:1.5 AMP.
3. CONTACT RESISTANCE:50 milliohms max.
4. INSULATION RESISTANCE:500 me ohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
        RESISTANCE:1000V AC RMS 50Hz. 1min.

MECHNICAL:

1. HOUSING MATERIAL: glass filled polyester(UL94V-0).
2. CONTACT MATERIAL: phosphor bronze T=0.46mm (C5 100).
3. PLATING: gold plating over nickel.
4. DURRABILITY:750 cycles min.
5. PCB RETENTION PRE-SOLDER:1 LB min.
6. PCB RETENTION POST-SOLDER:10 LB min.

ENVIRONMENTAL:


1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)
MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.
