90 Degree RJ45

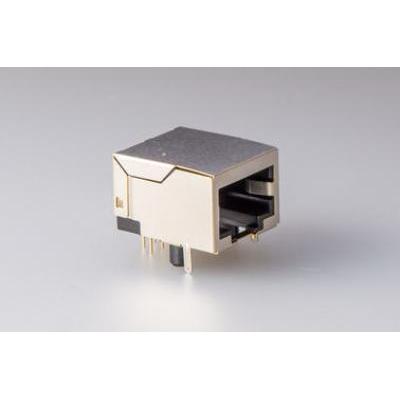

Gold Flash 90 Degree RJ45 10P8C with Shielded and No LED , PCB Female Jack

  • Gold Flash 90 Degree RJ45 10P8C with Shielded and No LED , PCB Female Jack

Product Details:

Place of Origin:
Shen Zhen, China
Brand Name:
OEM / ODM
Certification:
ISO9001-2008
Part Number:
RJ45-1059-208012

Payment & Shipping Terms:

Packaging Details:
100pcs/Tray
Delivery Time:
24-30 work days
Payment Terms:
D/A, D/P, L/C, T/T, PayPal
Supply Ability:
1000,000pcs/Month




Download

Inquiry

Detailed Product Description

Product Details:
Application :
Networking products: NIC, HUB, Switch, Router, Bridge.
Station: PC/system, Printer, Server, NB, IA Cable Modem, XDSL application, Set-Top-Box, Camera, Computer.
Description :
90 Degree RJ45 10P8C With Shielded And No LED , PCB Female Jack , Gold Flash
Series :
Connectors, Interconnects
Connector Type :
RJ45 Female
Mounting Type :
Insert Plant
Orientation :
90° Angle (Right) Side enter
Termination :
Solder
LED Color :
NO
Shielding :
Shielded


Electrical

1.voltage Rating:125 Val
2.Insnlation Resiitance:500M min
3.Withstanding Voltage :AC 1000vxRMS50HZ or 60/hz1min

 Mechanical

1.Operating:750  cycles min

 Material

1.Housing : PBT(vl94v-0) RA66(vl94v-0) RA46(vl94v-0)
2.Contact Wire :Diameter 0.45mm phosphor bronze gold plating over nickel
3. Gold plating :3u inch6u inch150u inch30u inch50u inch

 Environmental

1.Working Temperature: -20℃to 75℃
2.Storage Temperature: -45℃to 85℃

Mates with modular plug conforming to FCC part 68,subpart F.

Electrical Specifications:

1. Turns Ratio: Tx & Rx+1:1±5%
2. Insertion Loss:1-30MHz:-1.0dB Max
3. Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4. Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5. Crosstalk:1-100MHz:-30dB Min
6. OCL:100KHz,0.1V,8MADC:350uH Min

7. Hi-Pot:1500VAC,1mA,1Sec
