RJ11 RJ45 Jack

Products

< >

Product Details:

Application :	Networking products: NIC, HUB, Switch, Router, Bridge. Station: PC/system, Printer, Server, NB, IA Cable Modem, XDSL application, Set-Top-Box, Camera, Computer.

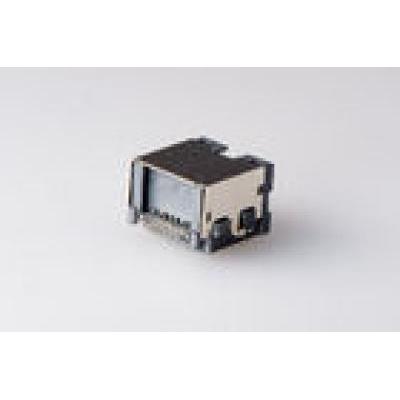

Description :	90 Degree Rj45 Connector / RJ11 RJ45 Jack Modular Connector With Sinking Plate
Series :	Connectors, Interconnects
Applications :	Sinking Jack
Mounting Type :	Side Enter
Orientation :	90° Angle (Right)
Termination :	Solder
LED Color :	No
Shielding :	Shielded , EMI Finger

ELECTRICAL:

1. VOLTAGE RATING:125 VAC RMS.

2. CURRENT RATING:1.5 AMP.

3. CONTACT RESISTANCE:50 milliohms max.

4. INSULATION RESISTANCE:500 me ohms min @ 500V DC.

5. DIELECTRIC WITHSTANDING RESISTANCE:1000V AC RMS 50Hz. 1min.

MECHNICAL:

1. HOUSING MATERIAL: glass filled polyester(UL94V-0).

2. CONTACT MATERIAL: phosphor bronze T=0.46mm (C5 100).

3. PLATING: gold plating over nickel.

4. DURRABILITY:750 cycles min.

5. PCB RETENTION PRE-SOLDER:1 LB min.

6. PCB RETENTION POST-SOLDER:10 LB min.

ENVIRONMENTAL:

1. STORAGE: -40℃ TO +85℃.2. OPERATION:0℃ TO 70℃3. WAVE SOLDER TEMPERTURE:230-250℃ (5-10 seconds)

MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.
