RJ11 RJ45 Jack

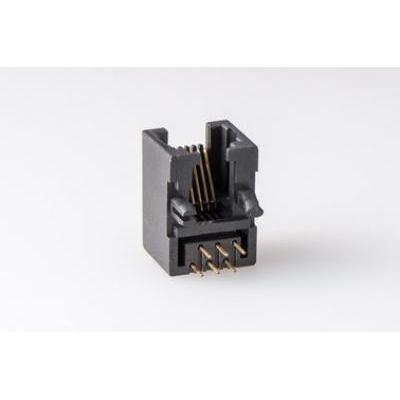

6P6C / 6P4C / 6P2C / RJ11 RJ45 Jack, Telephone Modular Jack Full Plastic Single Port Female Network

  • 6P6C / 6P4C / 6P2C / RJ11 RJ45 Jack, Telephone Modular Jack Full Plastic Single Port Female Network

Product Details:

Place of Origin:
Shen Zhen, China
Brand Name:
OEM / ODM
Certification:
ISO9001,SGS,UL,CE,REACH
Part Number:
RJ11-1053-206001




Payment & Shipping Terms:

Packaging Details:
80 pcs in 1 tray,7 tray in 1 small carton, which is 31.5*24*19 CM,2 Small carton in a big carton which is 51*32.5*21 CM 8.6 KGS (1120 pcs) of each big carton
Delivery Time:
3-30 work days
Payment Terms:
T/T, L/C, D/A, D/P, PAYPAL
Supply Ability:
2,000,000pcs/Month




Download

Inquiry

Detailed Product Description

Product Details:
Application :
Networking products: NIC, HUB, Switch, Router, Bridge.
Station: PC/system, Printer, Server, NB, IA Cable Modem, XDSL application, Set-Top-Box, Camera, Computer.
Port :
Single
Plastic :
PBT
Main Products :
RJ45, Side Entry Low Profile Rj45 Jack
Shield Material :
Brass Alloy
Terminal :
Phosphor Copper
With Standing Voltage :
AC 1500V RMS 50Hz Or 60 Hz 1 Min
6P6C / 6P4C / 6P2C / RJ11 RJ45 Jack Full Plastic Single Port Female Network


Specifications

Electrical

1.Current Rating
1.5 amps
2.Voltage Rating
125vac
3.Insulation Resistance
500 MΩmin
4.Contact Resistance
30 MΩmax
5.Withstanding Voltage
AC 1000V RMS 50Hz or 60Hz 1 min



Mechanical

1.Insertion Force
2 CONTACTS....350g
4 CONTACTS….500g
6 CONTACTS….750g
8 CONTACTS….900g
10 CONTACTS....1050g
2.Retention Strength
7.7KG.F min between jack and plug
3.Durability
750 mating cycles min

Material

1.Housing
ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2.Contact Wire
Diameter 0.45mm phosphor bronze gold plating over nickel  0.35mm
thickness phosphor bronze alloy selective gold plating over nickel
3.Shield
0.20~0.25mm thickness brass with tin plated
4.Gold Plating
1u inch,3u inch,6u inch,15u inch,30u inch,50u inch
6.RoHS peak wave
 solder
RoHS peak wave solder temperature rating 240°C±5°C
