Place of Origin:
|
Shen Zhen, China
|
|
Brand Name:
|
OEM / ODM
|
|
Certification:
|
ISO9001,SGS,UL,CE,REACH
|
|
Part Number:
|

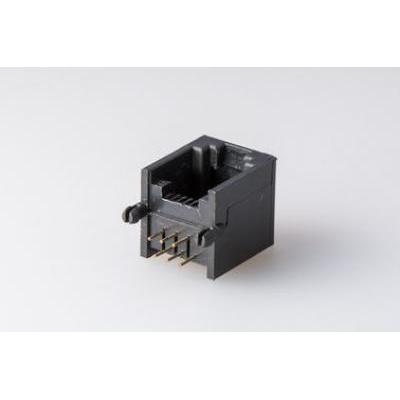

RJ11-1053-206001
|
|
Packaging Details:
|
120 pcs in 1 tray,20 tray in 1 carton
|
|
Delivery Time:
|
3-15 work days
|
|
Payment Terms:
|
T/T, L/C, D/A, D/P, PAYPAL
|
|
Supply Ability:
|
2,000,000pcs/Month
|
|
Application :
|
Networking products: NIC, HUB, Switch, Router, Bridge.
Station: PC/system, Printer, Server, NB, IA Cable Modem, XDSL application, Set-Top-Box, Camera, Computer.
|
|
Port :
|
Single
|
|
Plastic Color :
|
Black
|
|
Main Products :
|
RJ45, Side Entry Low Profile Rj45 Jack
|
|
Shield Material :
|
Brass Alloy
|
|
Terminal :
|
Phosphor Copper
|
|
With Standing Voltage :
|
AC 1500V RMS 50Hz Or 60 Hz 1 Min
|
|
PCB :
|
Insert Plate
|
|
1.Current Rating
|
1.5 amps
|
|
2.Voltage Rating
|
125vac
|
|
3.Insulation Resistance
|
500 MΩmin
|
|
4.Contact Resistance
|
30 MΩmax
|
|
5.Withstanding Voltage
|
AC 1000V RMS 50Hz or 60Hz 1 min
|
|
|
|
|
1.Insertion Force
|
2 CONTACTS....350g
4 CONTACTS….500g
6 CONTACTS….750g
8 CONTACTS….900g
10 CONTACTS....1050g
|
|
2.Retention Strength
|
7.7KG.F min between jack and plug
|
|
3.Durability
|
750 mating cycles min
|
|
1.Housing
|
ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
|
|
2.Contact Wire
|
Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm
thickness phosphor bronze alloy selective gold plating over nickel
|
|
3.Shield
|
0.20~0.25mm thickness brass with tin plated
|
|
4.Gold Plating
|
1u inch,3u inch,6u inch,15u inch,30u inch,50u inch
|
|
5.RoHS peak wave
solder
|
RoHS peak wave solder temperature rating 240°C±5°C
|
