+39 327 4153383
|
Place of Origin:
|
Shen Zhen, China
|
|
Brand Name:
|
OEM / ODM
|
|
Certification:
|
ISO9001,SGS,UL,CE,REACH
|
|
Part Name:
|

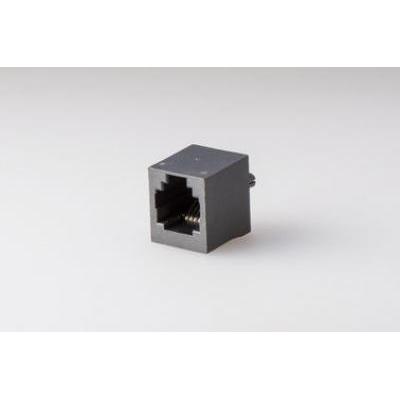

180 Degree - RJ11 Jack
|
|
Packaging Details:
|
50 pcs in 1 tray,10 tray in 1 small carton, which is 31.5*24*19 CM,2 Small carton in a big carton which is 51*32.5*21 CM 8.6 KGS (1120 pcs) of each big carton
|
|
Delivery Time:
|
3-30 work days
|
|
Payment Terms:
|
T/T, L/C, D/A, D/P, PAYPAL
|
|
Supply Ability:
|
2,000,000pcs/Month
|
|
Contact
|
Phosphor Bronze, 6u-inch gold flashed unless specified
|
|
Housing
|
Thermoplastic LCP UL94V-0 rated
|
|
Operating Temperature
|
0℃ --70℃
|
|
Storage temperature
|
-40℃--85℃
|
|
Turns Ratio
|
Tx & Rx+1:1±5%
|
|
Insertion Loss
|
1-30MHz:-1.0dB Max
|
|
Return Loss:1-30MHz
|
-16dB Min; 60-80MHz:12dB Min
|
|
Common Mode Rejection
|
1-100MHz:-30dB Min;200MHz:-20dB Min
|
|
Crosstalk
|
1-100MHz:-30dB Min
|
|
OCL
|
100KHz,0.1V,8MADC:350uH Min
|
|
Hi-Pot
|
1500VAC,1mA,1Sec
|
