Place of Origin:
|
Shen Zhen, China
|
|
Brand Name:
|
OEM / ODM
|
|
Certification:
|
ISO9001,SGS,UL,CE,REACH
|
|
Part Number:
|
RJ45-130B-10F6
|
|
Packaging Details:
|
80 pcs in 1 tray,7 tray in 1 small carton, which is 31.5*24*19 CM,2 Small carton in a big carton which is 51*32.5*21 CM 8.6 KGS (1120 pcs) of each big carton
|
|
Delivery Time:
|
3-30 work days
|
|
Payment Terms:
|
T/T, L/C, D/A, D/P, PAYPAL
|
|
Supply Ability:
|
2,000,000pcs/Month
|
|
Application :
|
Networking products: NIC, HUB, switch, router, bridge, work
Station: PC/system, printer, server, NB, IA cable modem, XDSL application, set-top-box
|
|
Shield Material :
|
Brass Alloy
|
|
Main Products :
|

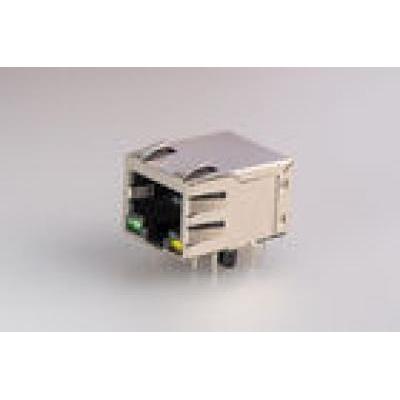

RJ45 , Side Entry Low Profile Rj45 Jack
|
|
Shielding Shell :
|
Nickel
|
|
Terminal :
|
Phosphor Copper
|
|
RJ45 PCB Modular :
|
255 ℃ 5 Seconds
|
|
Application :
|
10P 10C
|
|
Plastic :
|
PBT Black
|
|
Application :
|
1 Port 10 / 100 / 1000 Base - T
|
|
Gender :
|
Female
|
|
Plating :
|
Gold Plated 1u"
|
|
Complies with IEEE standards and all 10/100 Ethernet specifications including 350uH with 8MA DC bias
|
|
|
Contact :
|
Phosphor Bronze, 6u-inch gold flashed unless specified
|
|
Housing :
|
Thermoplastic LCP UL94V-0 rated
|
|
Operating Temperature :
|
0℃ --70℃
|
|
Storage Temperature :
|
-40℃--85℃
|
|
Peak reflow temperature rating 245℃
|
|
|
Minimum1500Vrms isolation per IEEE 802.3requirement
|
|
|
Turns Ratio :
|
Tx & Rx+1:1±5%
|
|
Insertion Loss :
|
1-30MHz:-1.0dB Max
|
|
Return Loss :
|
1-30MHz:-16dB Min; 60-80MHz:12dB Min
|
|
Common Mode Rejection :
|
1-100MHz:-30dB Min;200MHz:-20dB Min
|
|
Crosstalk :
|
-30dB Min
|
|
OCL :
|
100KHz,0.1V,8MADC:350uH Min
|
|
Hi-Pot :
|
1500VAC,1mA,1Sec
|
