Place of Origin:
|
Shen Zhen, China
|
|
Brand Name:
|
OEM/ODM
|
|
Certification:
|
ISO9001-2008
|
|
Part Number:
|

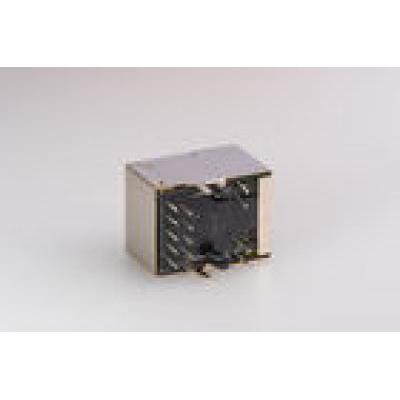

RJ45-071A-10F0
|
|
Packaging Details:
|
80 pcs in 1 tray,7 tray in 1 small carton, which is 31.5*24*19 CM,2 Small carton in a big carton which is 51*32.5*21 CM 8.6 KGS (1120 pcs) of each big carton
|
|
Delivery Time:
|
24-30 work days
|
|
Payment Terms:
|
D/A, D/P, L/C, T/T, PayPal
|
|
Supply Ability:
|
1000,000pcs/Month
|
|
Application :
|
Networking products: NIC, HUB, switch, router, bridge, work
Station: PC/system, printer, server, NB, IA cable modem, XDSL application, set-top-box
|
|
Shield :
|
Brass Alloy
|
|
Plastic :
|
PBT
|
|
Orientation :
|
90° Angle (Right) Side enter
|
|
Terminal :
|
Phosphor Copper
|
|
Soldering Temperature :
|
255 ℃ 5 Seconds
|
|
Application :
|
10/100/1000MB
|
|
Series :
|
Connectors, Interconnects
|
|
Connector Type :
|
RJ45 Female
|
|
Mounting Type :
|
Insert Plate
|
|
Orientation :
|
90 Degree, Side Enter
|
|
Termination :
|
Solder
|
|
LED Color :
|
Yellow, Green
|
|
Shielding :
|
Shielded
|
|
1. Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
|
|
2. High performance for maximum EMI suppression
|
|
3. 350uH minimum OCL with 8mA bias current
|
|
4. Current rating 1.5 amps
|
|
5. Voltage rating 125vac
|
|
6. Insulation resistance 500 MΩmin
|
|
7. Contact resistance 30 MΩmax
|
|
8. Withstanding voltage AC 1500V RMS 50Hz or 60Hz 1 min
|
|
9. Insertion loss: -1.2dB maximum @100KHz-100MHz
|
|
10. Return loss: -18dB minimum @1MHz-30MHz
|
|
11. 14dB minimum @30MHz-60MHz
|
|
12. 12dB minimum @60MHz-80MHz
|
|
13. 10dB minimum @80MHz-100MHz
|
|
14. Common mode rejection: -30dB minimum @1MHz-100MHz
|
|
15. Cross talk: -30dB minimum @1MHz-100MHz
|
|
Operating temperatures :
|
-40 to 85℃
|
|
Storage temperatures :
|
-40 to 85℃
|
