Place of Origin:
|
Shen Zhen. China
|
|
Brand Name:
|
OEM/ODM
|
|
Certification:
|
ISO 9001 ：2008 , RoHs , SGS
|
|
Part Number:
|
RJ45-023B-06F6-2Y
|
|
Packaging Details:
|
50 pcs in 1 tray , 10 tray in 1 carton , which is 31.5*24*40 CM , 7.8 KGS (500pcs ) in 1 carton
|
|
Delivery Time:
|
10 - 25 work days
|
|
Payment Terms:
|
L/C, D/A, D/P, T/T
|
|
Supply Ability:
|
5,000,000pcs/Month
|
|
Application :
|
TV , Set Box , IP CAMERA , DVR, VOIP , Computer
|
|
Description :
|

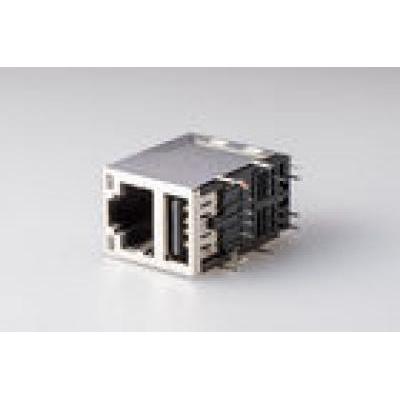

Ethernet 10 / 100 Base -T Female Rj45 USB Connector With Shield And Led
|
|
Plastic :
|
HIGH TEMP , LCP
|
|
Orientation :
|
90 Degree , Side Enter
|
|
Terminal :
|
Phosphor Copper
|
|
Series :
|
Connectors, Interconnects
|
|
Connector Type :
|
RJ45 USB
|
|
Mounting Type :
|
Side Enter
|
|
Orientation :
|
90° Angle (Right)
|
|
Termination :
|
Solder
|
|
LED Color :
|
Green/Yellow
|
|
Shielding :
|
Shielded , EMI Finger
|
|
Complies with IEEE standards and all 10/100 Ethernet specifications including 350uH with 8MA DC bias
|
|
|
Contact :
|
Phosphor Bronze, 6u-inch gold flashed unless specified
|
|
Housing :
|
Thermoplastic LCP UL94V-0 rated
|
|
Operating Temperature :
|
0℃ --70℃
|
|
Storage Temperature :
|
-40℃--85℃
|
|
Peak reflow temperature rating 245℃
|
|
|
Minimum1500Vrms isolation per IEEE 802.3requirement
|
|
|
Turns Ratio :
|
Tx & Rx+1:1±5%
|
|
Insertion Loss :
|
1-30MHz:-1.0dB Max
|
|
Return Loss :
|
1-30MHz:-16dB Min; 60-80MHz:12dB Min
|
|
Common Mode Rejection :
|
1-100MHz:-30dB Min;200MHz:-20dB Min
|
|
Crosstalk :
|
-30dB Min
|
|
OCL :
|
100KHz,0.1V,8MADC:350uH Min
|
|
Hi-Pot :
|
1500VAC,1mA,1Sec
|
