Place of Origin:
|
Shen Zhen , China
|
|
Brand Name:
|
OEM / ODM
|
|
Certification:
|
ISO9001 : 2008 , SGS , RoHs , UL
|
|
Part Number:
|
RJ45-1052-208027
|
|
Packaging Details:
|
100 pcs in 1 tray , 36 tray ( 2500pcs ) in carton ;
|
|
Delivery Time:
|
7 - 10 Work Days
|
|
Payment Terms:
|
L/C, D/A, D/P, T/T
|
|
Supply Ability:
|
5,000,000 PCS / Month
|
|
Application :
|
TV , Set Box , IP CAMERA , DVR, VOIP , Computer
|
|
Gold-Plated :
|
Female Jack
|
|
Color :
|
Black
|
|
Material :
|
PBT
|
|
Series :
|
Connectors, Interconnects
|
|
Connector Type :
|

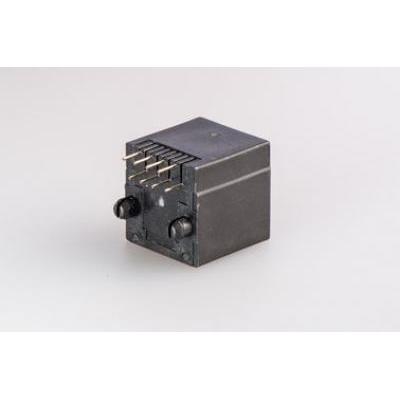

RJ45 Female Jack
|
|
Mounting Type :
|
Thru-Hole
|
|
Orientation :
|
8P8C Side Enter
|
|
Termination :
|
Solder
|
|
LED Color :
|
No
|
|
Shielding :
|
No Shield
|
|
Voltage Rating :
|
125 VAC RMS.
|
|
Current Rating :
|
1.5 AMP.
|
|
Contact Resistance :
|
50 milliohms max.
|
|
Insulation Resistance :
|
500 megaohms min @ 500V DC.
|
|
Withstanding Voltage :
|
1000V AC RMS 50Hz. 1min.
|
|
Housing Material :
|
Glass filled polyester(UL94V-0).
|
|
Contact Material :
|
Phosphor bronze T=0.46mm (C5 100).
|
|
Plating :
|
Gold plating over nickel.
|
|
Durability :
|
750 cycles min.
|
|
PCB Retention Pre-solder :
|
1 LB min.
|
|
PCB Retention Post-solder :
|
10 LB min.
|
|
Operation Temperature :
|
0℃ TO 70℃
|
|
Storage Temperature :
|
-40℃ TO +85℃.
|
|
Wave Solder Temperature
|
230-250℃(5-10 seconds)
|
