| Place of Origin: | Shen Zhen, China |
| Brand Name: | OEM / ODM |
| Certification: | ISO9001,SGS,UL,CE,REACH |

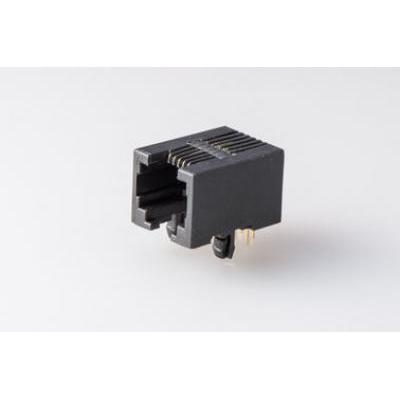

| Part Number: | RJ45-1053-206001 |
|
Minimum Order Quantity:
|
2000 PCS
|
|
Price:
|
USD 1.6 ~ 3.0 PCS
|
|
Packaging Details:
|
120 pcs in 1 tray,20 tray in 1 carton
|
|
Delivery Time:
|
3-15 work days
|
|
Payment Terms:
|
T/T, L/C, D/A, D/P, PAYPAL
|
|
Supply Ability:
|
2,000,000pcs/Month
|
|
Application :
|
TV , Set Box , IP CAMER , DVR, VOIP , Computer
|
|
Port :
|
Single
|
|
Plastic :
|
PBT
|
|
Plastic Color :
|
Black
|
|
Shield Material :
|
Brass Alloy
|
|
Terminal :
|
Phosphor Copper
|
|
Withstanding Voltage :
|
AC 1500V RMS 50Hz Or 60 Hz 1 Min
|
|
PCB :
|
Insert Plate
|
|
Current Rating :
|
1.5 amps
|
|
Voltage Rating :
|
125vac
|
|
Insulation Resistance :
|
500 MΩmin
|
|
Contact Resistance :
|
30 MΩmax
|
|
Withstanding Voltage :
|
AC 1000V RMS 50Hz or 60Hz 1 min
|
|
Housing
|
ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
|
|
Contact Wire
|
Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm
thickness phosphor bronze alloy selective gold plating over nickel
|
|
Shield
|
0.20~0.25mm thickness brass with tin plated
|
|
Gold Plating
|
1u inch,3u inch,6u inch,15u inch,30u inch,50u inch
|
|
RoHS peak wave
solder
|
RoHS peak wave solder temperature rating 240°C±5°C
|
|
Insertion Force
|
2 CONTACTS....350g
4 CONTACTS….500g
6 CONTACTS….750g
8 CONTACTS….900g
10 CONTACTS....1050g
|
|
Retention Strength
|
7.7KG.F min between jack and plug
|
|
Durability
|
750 mating cycles min
|
