RJ45 Modular Jack

Network Switch Single Port RJ45 Female Jack Connector Tab Up Without Transformer

< >

•

Product Details:

Place of Origin:	Shen Zhen,China
Brand Name:	OEM/ODM
Certification:	ISO9001 : 2008 , SGS , RoHs , UL
Part Number:	RJ45-1055-2080

Payment & Shipping Terms:

Packaging Details:	100 pcs in 1 tray
Delivery Time:	1-2 Weeks
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	50000/day

Download

Inquiry

Product Consultati:

Product:

Name:

Email:

Tel:

Content:

Detailed Product Description

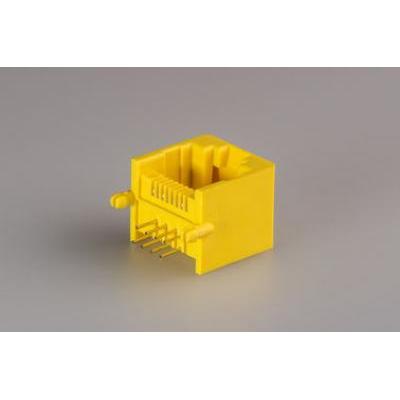

 Single Port RJ45 Connector Tab Up Without Transformer for Network Switch

Feature:

1. RJ45 Connector 8p8c
2. IS09001-2008
3. SGS Certified
4. More than 10 Years Connectors Industry
5. used for HUB,PC Card,Switch,Route,PC Mainboard,SDH,PDH,IP Phone,XDSL Modem

Packaging&Delivery

1. Packaging Detail:1pc/bag 100pv/bag 1000pc/bag
2. Delivery Detail: About 2-3 weeks

Eceatrical

1. voltage Rating:125 val
2. Insnlation Resiitance:500M min
3. Withstanding Voltage :AC 1000vxRMS50HZ or 60/hz1min

Mechanical

1.Operating:750 cycles min

Materical

1. Housing : PBT(vl94v-0) RA66(vl94v-0) RA46(vl94v-0)
2. Contact Wire :Diameter 0.45mm phosphor bronze gold plating over nickel
3. Gold plating :3u inch6u inch150u inch30u inch50u inch

Environmental

1. Working Temeperature:-20℃to 75℃
2. Storage Temeperature:-45℃to 85℃
