Place of Origin:
|
Shen Zhen, China
|
|
Pitch:
|
All 0.5mm 0.8mm 1.0mm 1.25mm
|
|
Mounting Angle:
|
All 180° 90°
|
|
Connector Location:
|
All Top\Bottom\Dual\Side Contact
|
|
Termination Style:
|
All SMT DIP
|
|
Part Name:
|

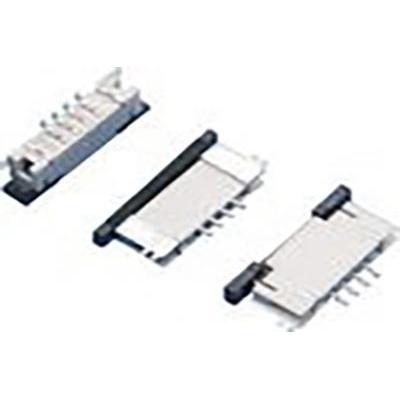

Board to Board Connector
|
|
Package Temperature:
|
Tape & Reel / Pipe or according to customer demand
|
|
Delivery Time:
|
3-15work days
|
|
Payment Terms:
|
T/T, L/C, D/A, D/P, Western Union, PAYPAL
|
|
|
|
||
|
|
Pitch
|
1.0 mm
|
|
|
|
Pins
|
4
|
|
|
|
Connector location
|
Under lock
|
|
|
|
Mounting angle
|
Vertical
|
|
|
|
Applicable FPC thickness
|
0.3±0.02mm
|
|
|
|
Termination style
|
SMT
|
|
|
Rated current
|
0.5A
|
|
Rated voltage
|
30VAC
|
|
Contact resistance
|
40 mΩ max.
|
|
Withstand voltage
|
500V/min AC
|
|
Insulation Resistance
|
1000 MΩ min.
|
|
Durability
|
250 cycles min
|
|
Ambient operating temperature
|
-40℃~+85℃
|
|
Housing
|
Glass-Reinforced Thermoplastic.UL94V-0 color :black
|
|
Contacts
|
Contact : Copper Alloy
|
|
Packaging
|
Tape & Reel/Pipe
|
|
Storage temperature
|
-10℃～40℃
|
|
Storage humidity
|
≤80%
|
|
Environment requirement
|
No acidic/alkaline/corrosive gases
|
|
Re-testing periods
|
6 months
|
