Place of Origin:
|
Shen Zhen, China
|
|
Pitch:
|
All 0.5mm 0.8mm 1.0mm 1.25mm
|
|
Mounting Angle:
|
All 180° 90°
|
|
Connector Location:
|
All Top\Bottom\Dual\Side Contact
|
|
Termination Style:
|
All SMT DIP
|
|
Part Name:
|

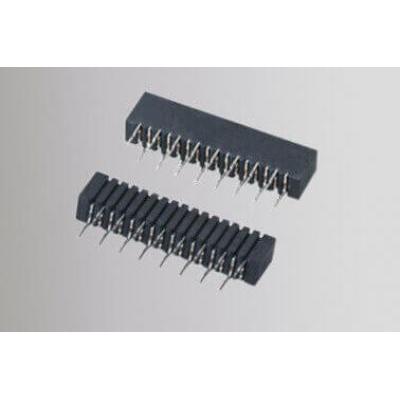

FPC 90 Degree DIP non-ZIP Dual contact connector
Right Foo-1.25mm
|
|
Package Temperature:
|
Tape & Reel / Pipe or according to customer demand
|
|
Delivery Time:
|
3-15work days
|
|
Payment Terms:
|
T/T, L/C, D/A, D/P, Western Union, PAYPAL
|
|
Pitch :
|
1.25mm
|
|
Pins :
|
4~33
|
|
Connector location :
|
Dual contact
|
|
Mounting angle :
|
Vertical/180°
|
|
Applicable FPC thickness :
|
0.3±0.02mm
|
|
Termination style :
|
SMT
|
|
Rated current :
|
1.0A AC/DC
|
|
Rated voltage :
|
50V AC/DC
|
|
Contact resistance :
|
40 mΩ max.
|
|
Withstand voltage :
|
200V/min AC
|
|
Insulation Resistance :
|
800 mΩ min.
|
|
Durability :
|
20 times
|
|
Ambient operating temperature :
|
-40℃~+85℃
|
|
Housing :
|
LCP resin (UL94V-0)/Natural
|
|
Contacts :
|
Phosphor Bronze/nickel substrate (≥50u〞), Matte Tin plating (≥100u〞)
|
|
Packaging :
|
Tape & Reel/Pipe
|
|
Storage temperature :
|
-10℃～40℃
|
|
Storage humidity :
|
≤80%
|
|
Environment requirement :
|
No acidic/alkaline/corrosive gases
|
|
Re-testing periods :
|
6 months
|
