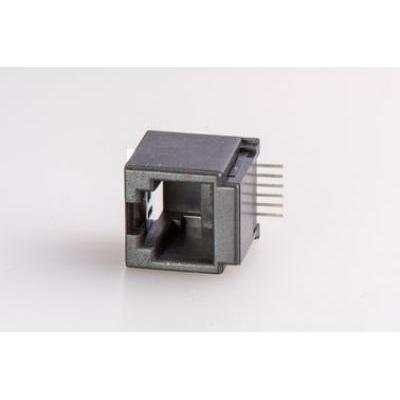

RJ11 RJ45 Modular Jack 6P6C Single Port SMT Female Connector and Full Plastic

  • RJ11 RJ45 Modular Jack 6P6C Single Port SMT Female Connector and Full Plastic

Product Details:

Place of Origin: Shen Zhen , China
Brand Name: OEM/ODM
Certification: ISO9001 : 2008 , SGS , RoHs
Part Number: RJ45-1052-206003


Payment & Shipping Terms:



Delivery Time:
7 - 10 Work Days
Payment Terms:
L/C, D/A, D/P, T/T
Supply Ability:
5,000,000 PCS / Month

Download

Inquiry

Detailed Product Description



RJ45 Connector Product Details:
Application :
TV , Set Box , IP CAMER , DVR, VOIP , Computer
Gold-Plated :
Fu" , 1u" , 3u" , 6u" , 15u" , 30u" , 50u"
Gender :
Female
Color :
Black, Yellow, Blue Option
Type :
SMD Connector
Shield :
No Shielded
Pin Number :
6 Pin
Series
SMD RJ45 Female Jack
Connector Type
RJ45 Modular Jack
Mounting Type
Thru-Hole
Orientation
6P6C Side Enter
Termination
Solder
LED Color
Without
Shielding
No Shield

RJ45 Connector Electrical
Voltage Rating :
125 VAC RMS
Current Rating :
1.5 AMP
Contact Resistance :
50 milliohms max.
Insulation Resistance :
500 me ohms min @ 500V DC.
Withstanding Voltage :
1000V AC RMS 50Hz. 1min

RJ45 Connector Mechanical
Housing Material :
Glass filled polyester(UL94V-0).
Contact Material :
Phosphor bronze T=0.46mm (C5 100).
Plating :
Gold plating over nickel.
Durability :
750 cycles min.
PCB Retention Pre-solder :
1 LB min.
PCB Retention Post-solder :
10 LB min.

RJ45 connector Environmental
Operation Temperature :
0℃ TO 70℃
Storage Temperature :
-40℃ TO +85℃.
Wave Solder Temperature :
230-250℃(5-10 seconds)
